Fluxgate Current Sensor Series

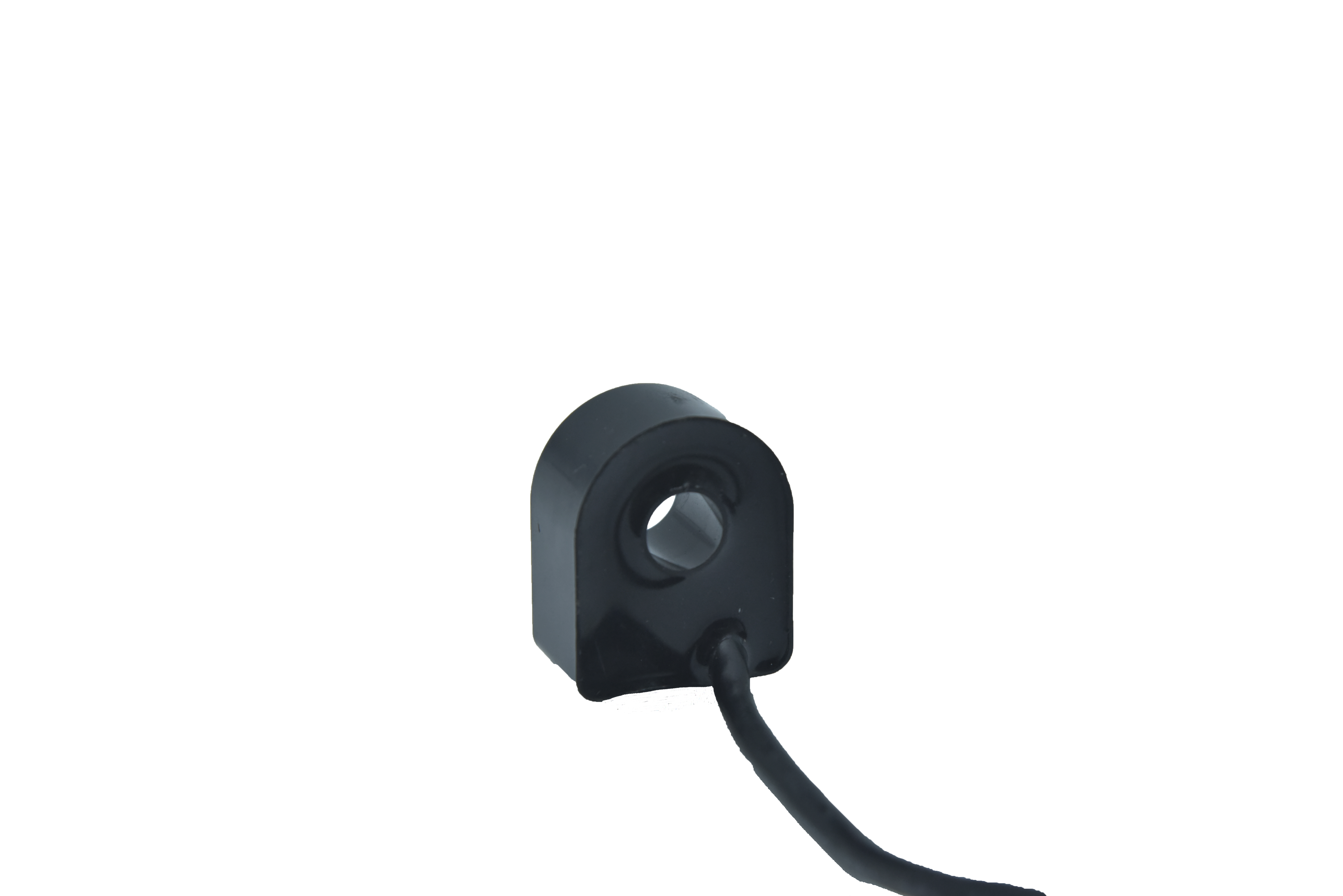

KG09（其它、100mA~3A、>10uS、>250KHz、>1%、-20℃~70℃）
KG09（其它、100mA~3A、>10uS、>250KHz、>1%、-20℃~70℃）
Product Features:
Magnetic fluxgate principle;
Voltage output;
High precision, high bandwidth;
Low temperature drift, low hysteresis.
Magnetic fluxgate principle;
Voltage output;
High precision, high bandwidth;
Low temperature drift, low hysteresis.
Specification Parameters
| Measurement range Ip | 0.6~2A |
Product Aperture(mm) | Ф9 |
| Coil Turns (ratio) N | — |
| Rated Output | 2.5±1V |
| Supply Voltage | 6.7V |
| Accuracy | ±1% |
| Linearity | ±1.5% |
| Zero Offset | ±10mV |
| Magnetic Imbalance | ±15mV |
| Zero point offset temperature drift | — |
| Amplitude temperature drift | — |
| Frequency bandwidth | 330Hz |
| Response Time | 700µs |
Current Consumption | ≤20mA |
| Ambient operating temperature | -20~70°C |
| Ambient storage temperature | -40~85°C |
| Mass | ≤25g |
| Insulation Voltage | 2.5KVrms/50HZ/2mA/1min |
| Insulation Impedance | — |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | — |
| Clearance | — |
| Reference standards | EN50178JB/T7490 |
| — | — |
