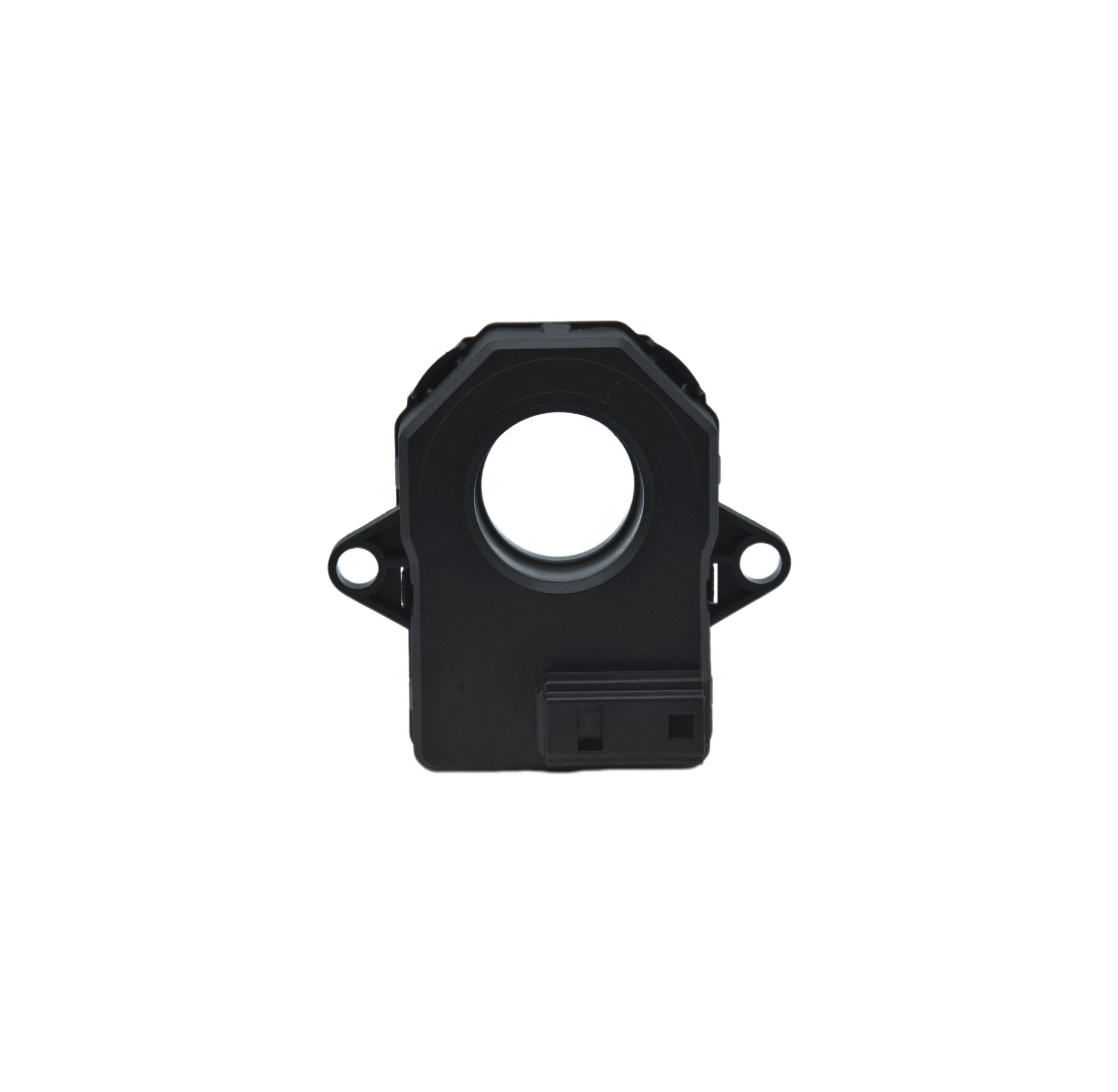

Fluxgate Current Sensor Series

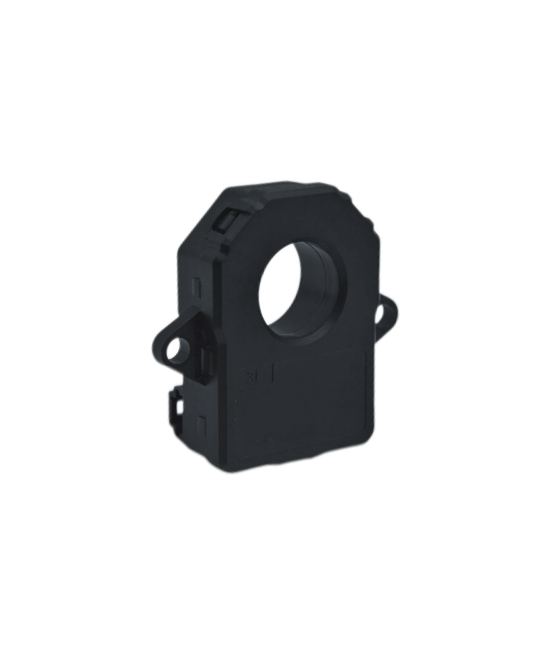

KG24（12V、50A~500A、<1uS、DC、<0.5%、-40℃~85℃）
KG24（12V、50A~500A、<1uS、DC、<0.5%、-40℃~85℃）
Product Features:
Output signal: High-speed CAN (500 kbps);
Modbus-RTU protocol, RS485 output 9600 bps;
Primary and secondary side isolated measurement;
Connector type: TE/AMP 1473672-1.
Output signal: High-speed CAN (500 kbps);
Modbus-RTU protocol, RS485 output 9600 bps;
Primary and secondary side isolated measurement;
Connector type: TE/AMP 1473672-1.
Specification Parameters
| Measurement range Ip | 300~500A |
Product Aperture(mm) | Ф24 |
| Coil Turns (ratio) N | — |
| Rated Output | CAN; RS485 |
| Supply Voltage | 12V; 24V |
| Accuracy | ±0.5% |
| Linearity | ±0.1% |
| Zero Offset | — |
| Magnetic Imbalance | — |
| Zero point offset temperature drift | — |
| Amplitude temperature drift | — |
| Frequency bandwidth | DC |
| Response Time | 100mS |
Current Consumption | ≤50mA |
| Ambient operating temperature | -40~85°C |
| Ambient storage temperature | -40~105°C |
| Mass | ≤80g |
| Insulation Voltage | 2.5KVrms/50HZ/2mA/1min |
| Insulation Impedance | — |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 7.2mm |
| Clearance | 6.95mm |
| Reference standards | EN50178JB/T7490 |
| — | — |
