Solar Energy Current Sensor Series

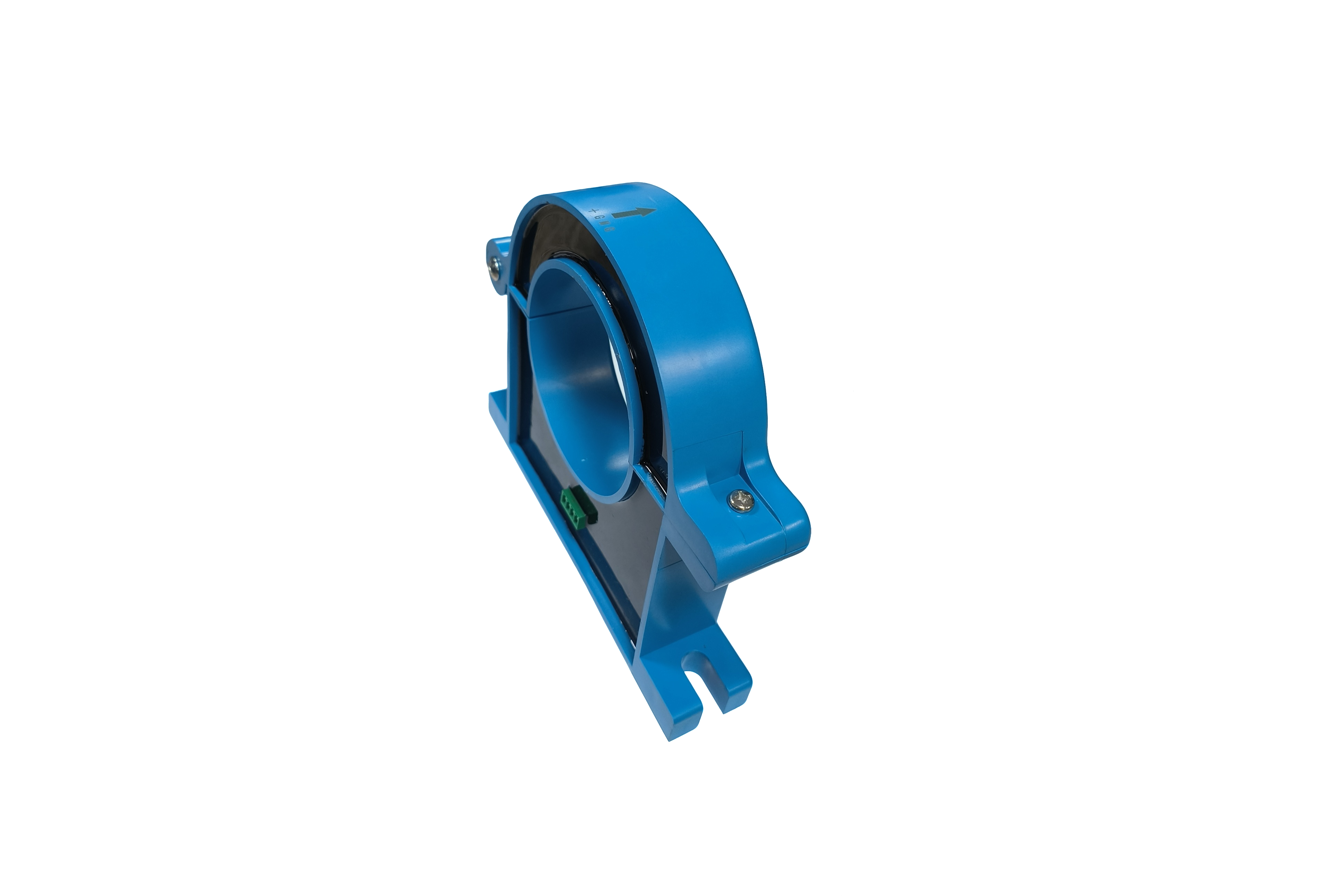

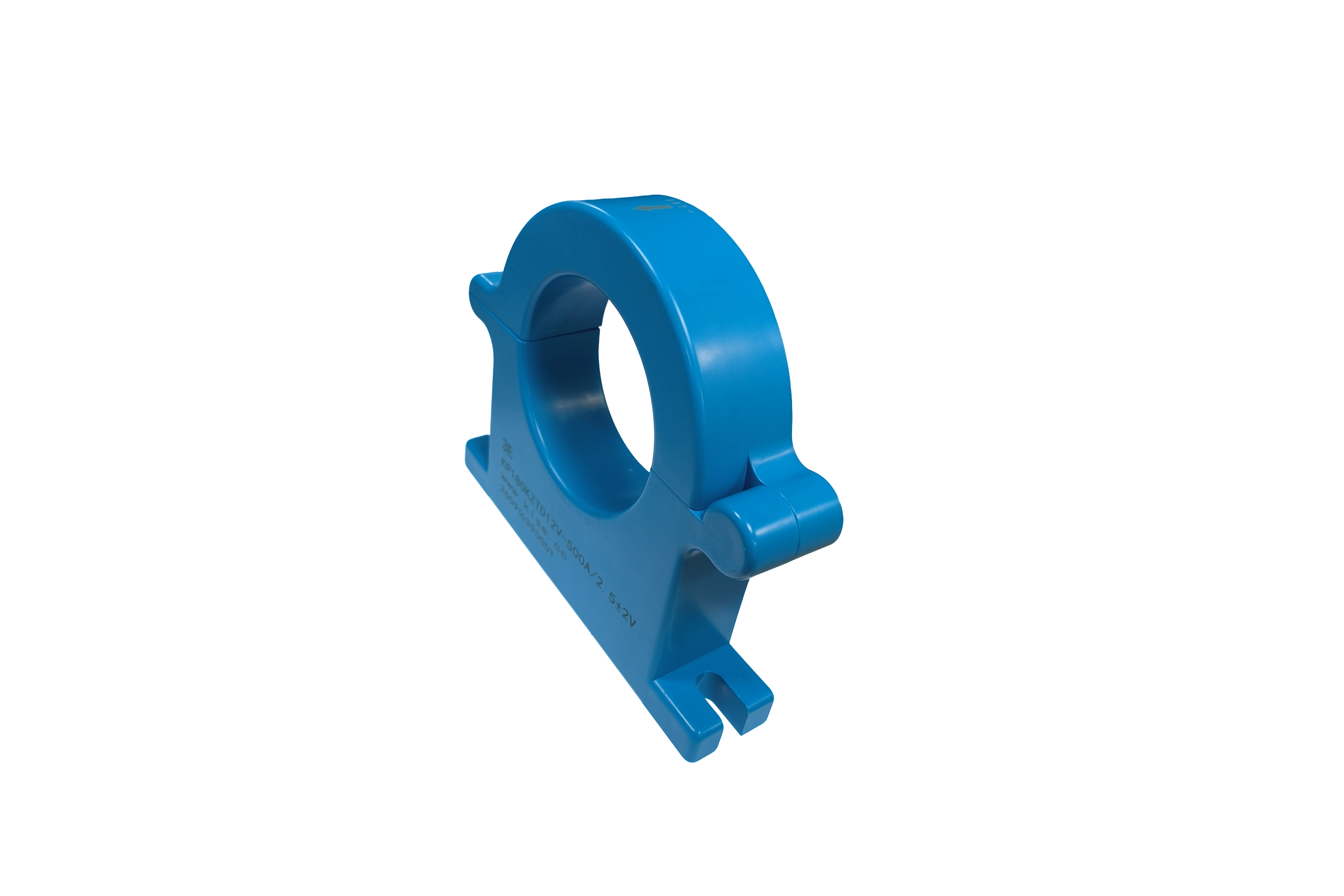

KP180K（12V、500A~1500A、>10uS、<10KHz、0.8%~1%、 Other）
KP180K（12V、500A~1500A、>10uS、<10KHz、0.8%~1%、 Other）
Product Features:
Integrated Hall effect;
With insulation withstand voltage of 5KV/AC.
Integrated Hall effect;
With insulation withstand voltage of 5KV/AC.
Specification Parameters
| Measurement range Ip | 700A |
Product Aperture(mm) | Ф180 |
| Coil Turns (ratio) N | — |
| Rated Output | 2.5±2V |
| Supply Voltage | 12V |
| Accuracy | ±1% |
| Linearity | ±1% |
| Zero Offset | ±10mV |
| Magnetic Imbalance | ±20mV |
| Zero point offset temperature drift | — |
| Amplitude temperature drift | — |
| Frequency bandwidth | 10KHz |
| Response Time | ≤20μS |
Current Consumption | ≤35mA |
| Ambient operating temperature | -10~70°C |
| Ambient storage temperature | -10~70°C |
| Mass | ≤500g |
| Insulation Voltage | 5KVrms/50HZ/2mA/1min |
| Insulation Impedance | — |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 6.4mm |
| Clearance | 6.4mm |
| Reference standards | EN50178JB/T7490 |
| — | — |
