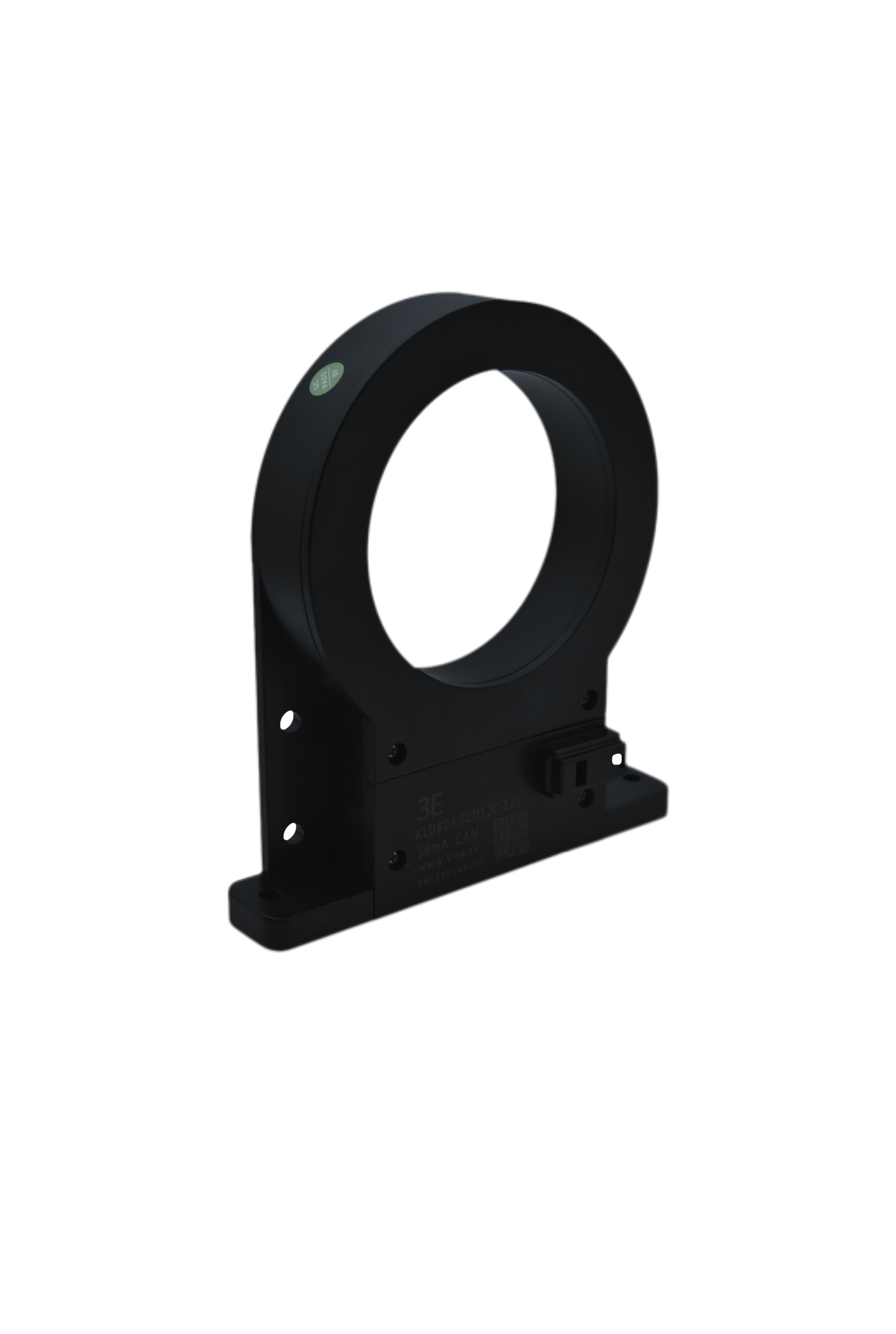

Digital Current Sensor Series (RS485 output)

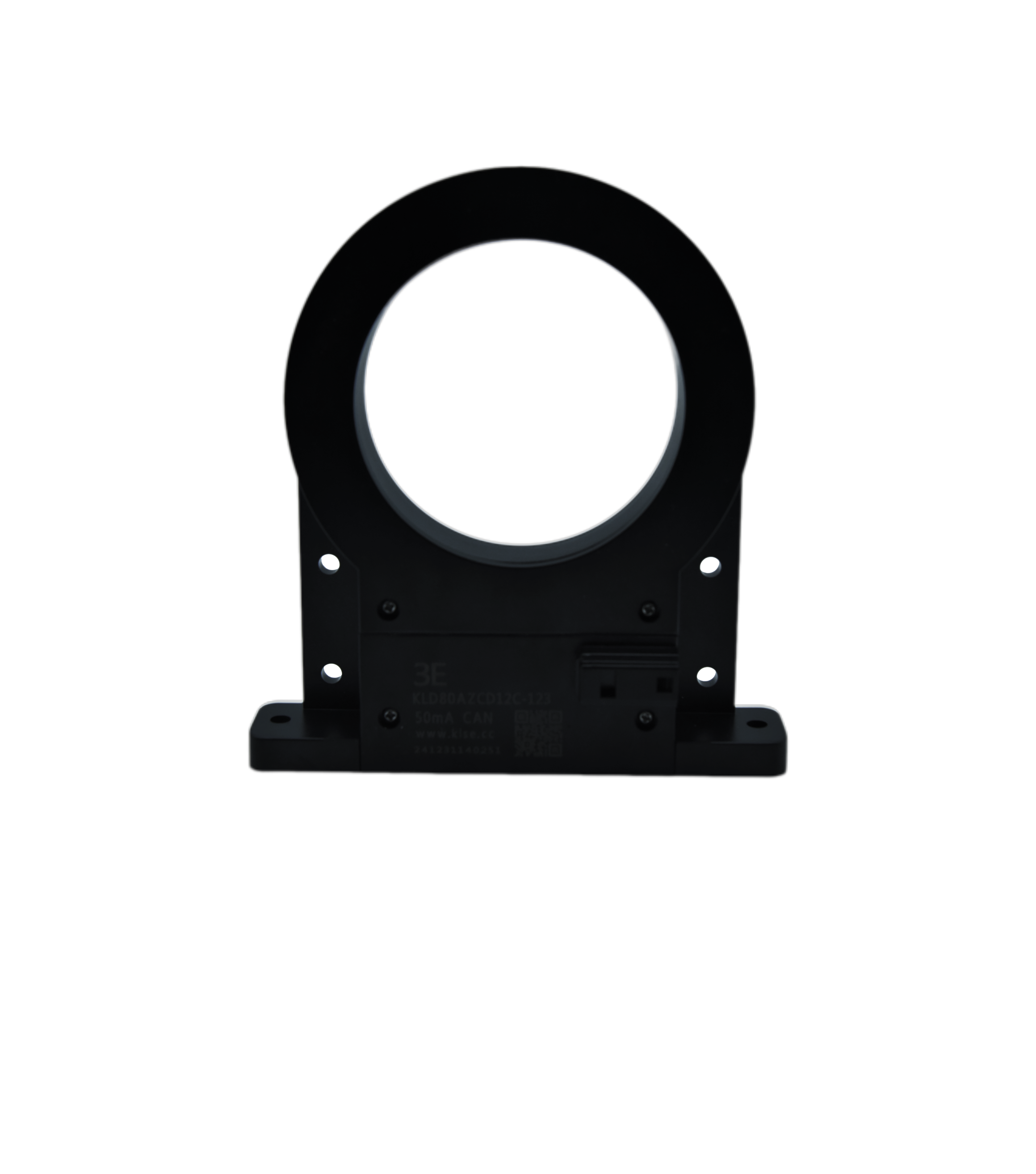

KLD80A（±12V、<100mA、<1uS、DC、0.8%~1%、-40℃~85℃）
KLD80A（±12V、<100mA、<1uS、DC、0.8%~1%、-40℃~85℃）
Product Features:
±12V single power supply
Rated current measurement range: ±10 to 50mA
Operating temperature range: -40℃ to +85℃
Output signal: RS485 9600bps Modbus-RTU protocol
Primary and secondary isolation measurement
Connector type: TE/AMP 1473672-1
±12V single power supply
Rated current measurement range: ±10 to 50mA
Operating temperature range: -40℃ to +85℃
Output signal: RS485 9600bps Modbus-RTU protocol
Primary and secondary isolation measurement
Connector type: TE/AMP 1473672-1
Specification Parameters
| Measurement range Ip | 10~50mA |
Product Aperture(mm) | φ80 |
| Baud Rate | 9600bps |
| Output | RS485 |
| Supply Voltage | ±12V |
| Accuracy | ±1% |
| Linearity | ±1% |
| Zero Offset | — |
| Magnetic Imbalance | ±0.5mA |
| Zero point offset temperature drift | — |
| Amplitude temperature drift | — |
| Frequency bandwidth | DC |
| Response Time | — |
Current Consumption | ≤25mA |
| Ambient operating temperature | -40~85°C |
| Ambient storage temperature | -40~105°C |
| Mass | ≤320g |
| Insulation Voltage | 4.25KVrms/50HZ/2mA/1min |
| Insulation Impedance | — |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 33 |
| Clearance | 18 |
| Reference standards | EN50178JB/T7490 |
| — | — |
