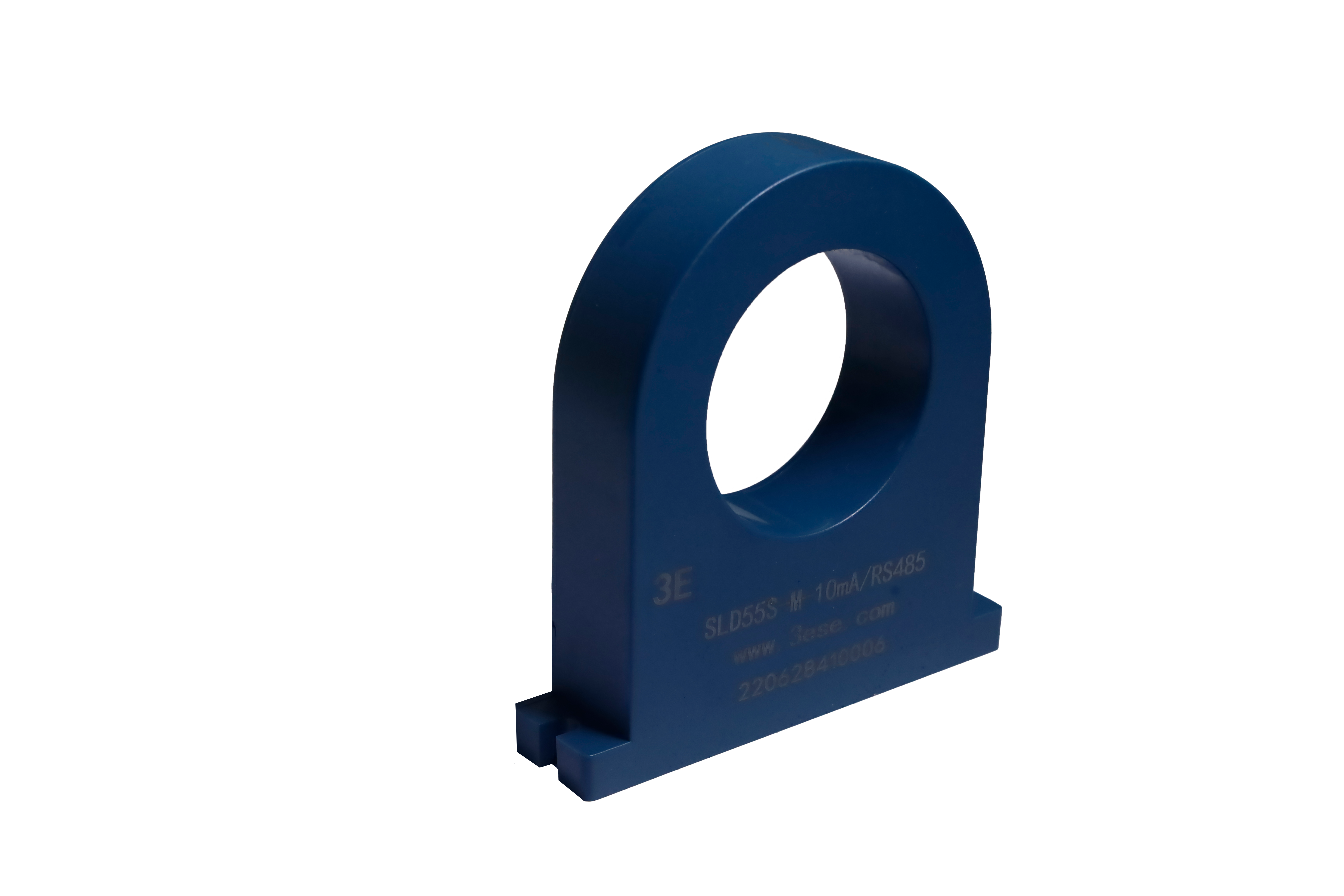

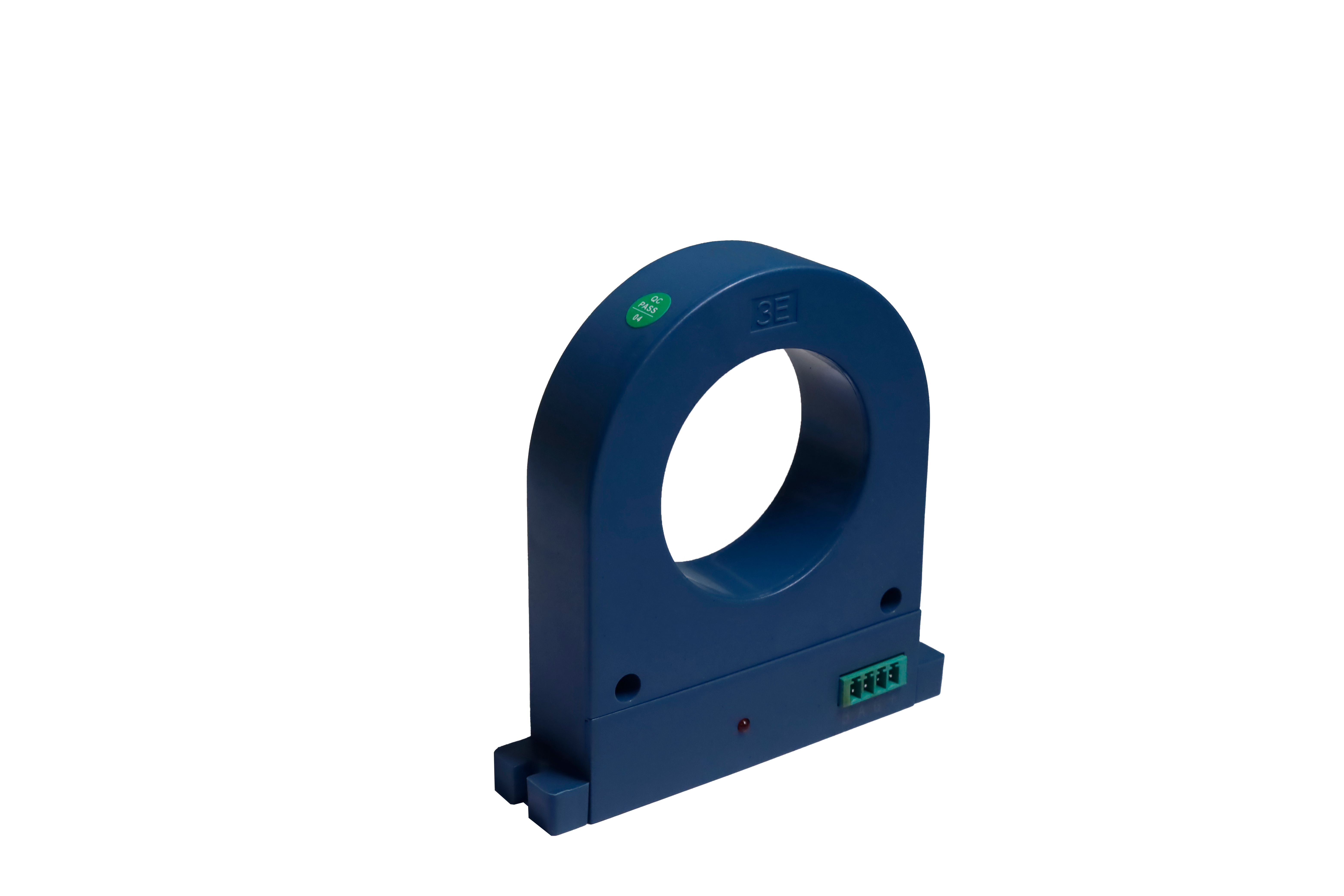

Digital Current Sensor Series (RS485 output)
KLD55（12V、<100mA、DC、0.8%~1%、-40℃~85℃）
KLD55（12V、<100mA、DC、0.8%~1%、-40℃~85℃）
Product Features:
12V single power supply
Rated current measurement range: ±10mA
Operating temperature range: -40℃ to +85℃
Output signal: RS485 9600bps Modbus-RTU protocol
Primary and secondary isolation measurement
Connector type: EDGV-3.81*4P
12V single power supply
Rated current measurement range: ±10mA
Operating temperature range: -40℃ to +85℃
Output signal: RS485 9600bps Modbus-RTU protocol
Primary and secondary isolation measurement
Connector type: EDGV-3.81*4P
Specification Parameters
| Measurement range Ip | 10mA |
Product Aperture(mm) | φ55 |
| Baud Rate | 9600bps |
| Output | RS485 |
| Supply Voltage | 12V |
| Accuracy | ±2% |
| Linearity | ±1% |
| Zero Offset | — |
| Magnetic Imbalance | — |
| Zero point offset temperature drift | — |
| Amplitude temperature drift | — |
| Frequency bandwidth | DC |
| Response Time | — |
Current Consumption | ≤30mA |
| Ambient operating temperature | -40~85°C |
| Ambient storage temperature | -40~85°C |
| Mass | ≤160g |
| Insulation Voltage | 3KVrms/50HZ/2mA/1min |
| Insulation Impedance | — |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 50 |
| Clearance | 53 |
| Reference standards | EN50178JB/T7490 |
| — | — |
