Solar Energy Current Sensor Series

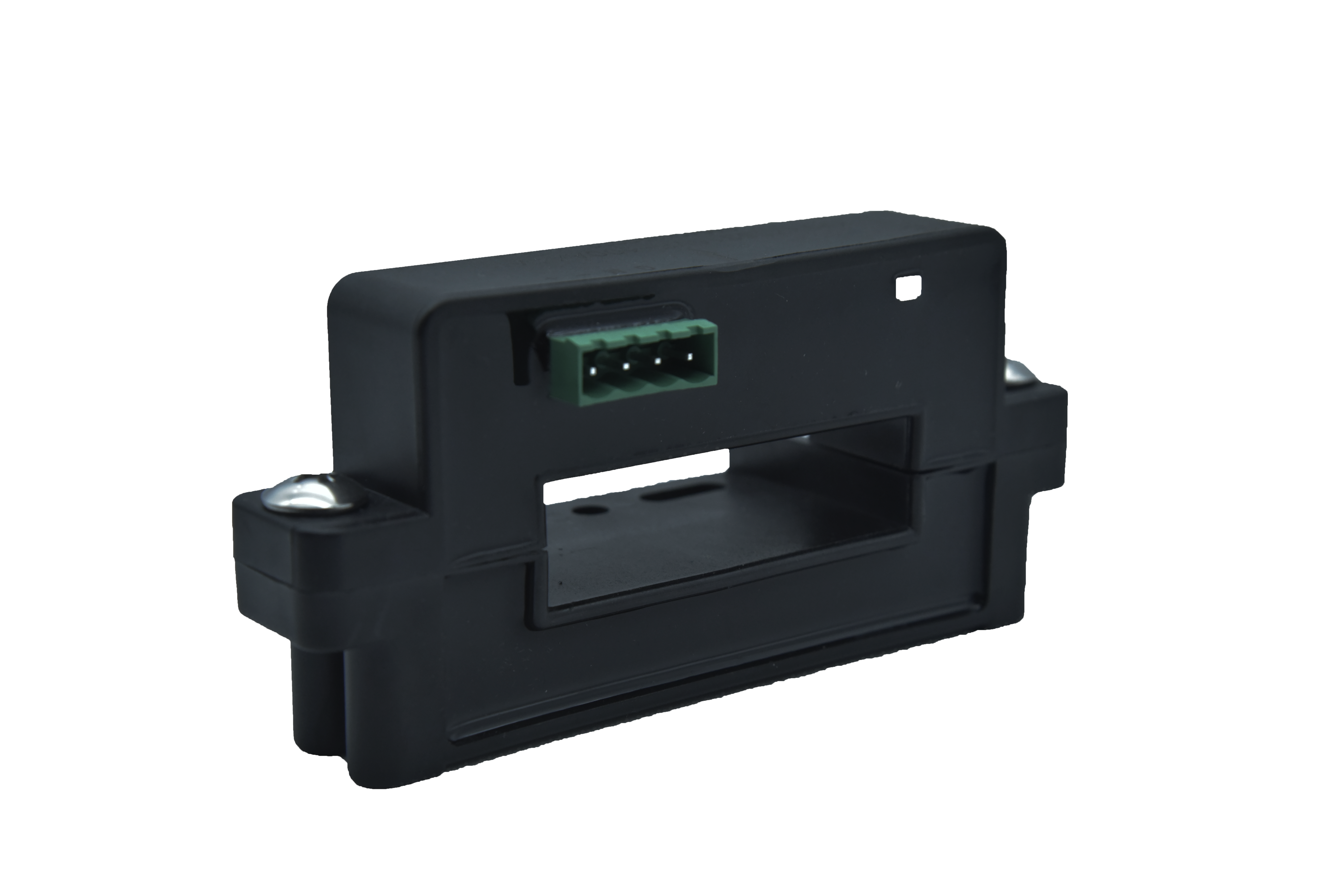

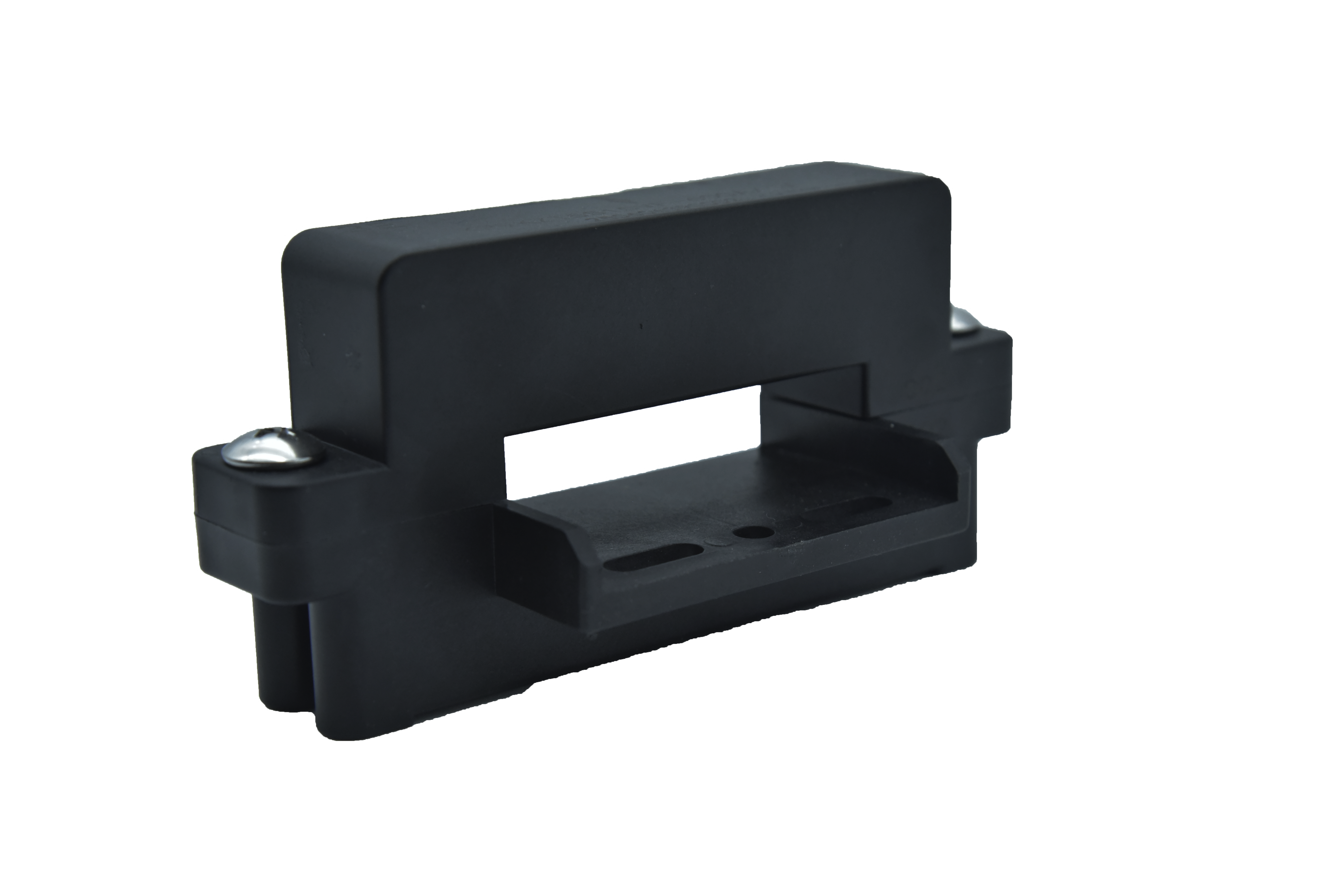

KP9K（±12V、50A~500A、3uS~10uS、10KHz~100KHz、0.8%~1%、-40℃~85℃）
KP9K（±12V、50A~500A、3uS~10uS、10KHz~100KHz、0.8%~1%、-40℃~85℃）
Product Features:
Integrated hall-effect technology
Wide bandwidth,quick response time
Insulation voltage:3KV/AC
High precision; Low-temperature drift Low hysteresis.
Integrated hall-effect technology
Wide bandwidth,quick response time
Insulation voltage:3KV/AC
High precision; Low-temperature drift Low hysteresis.
Specification Parameters
| Measurement range Ip | 100～2000A |
Product Aperture(mm) | 64X16 |
| Coil Turns (ratio) N | — |
| Rated Output | 4V ；5V |
| Supply Voltage | ±12V；±15V |
| Accuracy | ±1% |
| Linearity | ±1% |
| Zero Offset | ±20mV |
| Magnetic Imbalance | ±20mV |
| Zero point offset temperature drift | ±1mV/℃ |
| Amplitude temperature drift | ±0.1%/℃ |
| Frequency bandwidth | 50KHz |
| Response Time | ≤5μS |
Current Consumption | ≤40mA |
| Ambient operating temperature | -40~85°C |
| Ambient storage temperature | -40~85°C |
| Mass | ≤430g |
| Insulation Voltage | 3KVrms/50HZ/2mA/1min |
| Insulation Impedance | — |
| Shell flame retardant rating | UL94-V0 |
| Creepage distance | 33mm |
| Clearance | 27mm |
| Reference standards | EN50178JB/T7490 |
| — | — |
